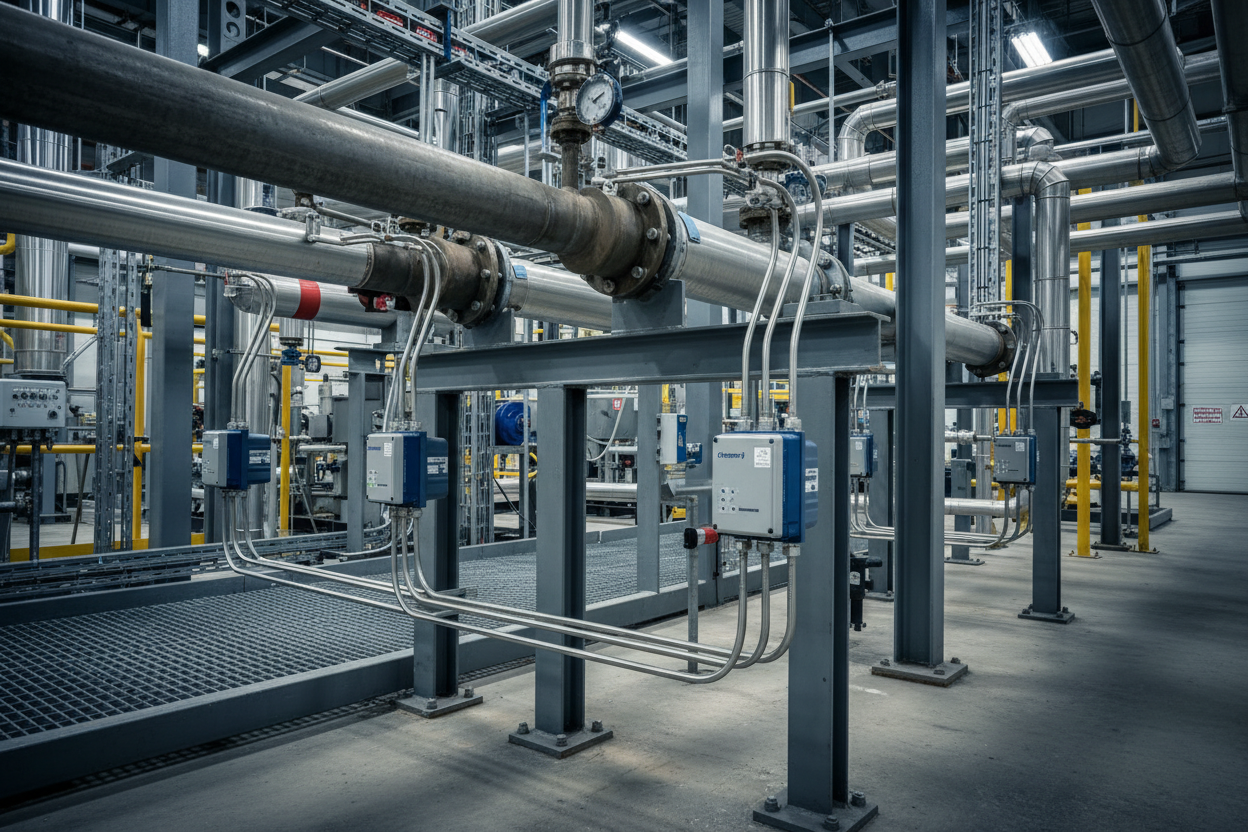

Engineering Principles of Sloped Impulse Lines

Impulse lines transmit pressure from process connections to measuring instruments. Proper slope ensures the line remains filled with the correct phase — liquid for liquid service, gas for gas service. Gravity-driven drainage or venting prevents accumulation of unwanted phases that distort pressure readings.

First, understand the physics. Pressure transmitters measure hydrostatic head plus process pressure. A liquid-filled impulse line on a gas measurement adds elevation head error. Conversely, a gas pocket in a liquid impulse line creates a compressible cushion that dampens pressure response and introduces measurement lag.

Second, consider fluid properties. Steam condenses in impulse lines when ambient temperature is below saturation temperature. Heavy hydrocarbons solidify when lines cool below pour point. Cryogenic liquids vaporize when exposed to ambient heat. The slope direction must accommodate these phase change behaviors. For differential pressure transmitters used in these applications, the Honeywell 51305829-400 Differential Pressure Transmitter and the Yokogawa DPharp EJA Series Pressure Transmitter are both suitable for process plant impulse line installations.

Slope Direction Selection by Service Type

For gas and steam applications, slope the impulse line toward the process connection at minimum 1:10 ratio (10% grade, approximately 6 degrees). This allows condensed liquid to drain back into the process line. Install condensate pots at the transmitter when continuous drainage is impractical. The pot provides a liquid seal while allowing gas pressure transmission.

For liquid applications, slope the impulse line toward the instrument at minimum 1:10 ratio. This allows trapped gases to vent toward the transmitter where they can escape through vent valves. Gas pockets compress under pressure changes, creating a spring effect that causes oscillating readings and slow response.

For steam service specifically, install condensate pots at the transmitter with the impulse line sloping toward the process. The pot maintains a constant liquid head reference while steam condenses and drains back. Size the pot volume at least 10 times the impulse line volume to prevent pot drainage during transient conditions.

Blockage Prevention and Maintenance Access

Sloped lines prevent particulate settling and solidification. In services with entrained solids, slope toward the process at 1:5 ratio (20% grade) to ensure positive drainage velocity. Install block and bleed valves at the transmitter for isolation during maintenance without disturbing the process connection.

Moreover, sloped installation facilitates purging operations. When calibrating or cleaning impulse lines, the slope allows complete drainage of purge fluids. Horizontal lines trap liquid pockets that contaminate subsequent measurements. Vertical sections in impulse piping create gas locks that interrupt pressure transmission.

Consider temperature effects on slope design. Heat-traced impulse lines require consistent slope to prevent cold spots where condensation or solidification occurs. Steam tracing must drain condensate effectively — install steam traps at low points. Electric tracing requires uniform contact — avoid supports that create air gaps.

Water Hammer and Pressure Surge Protection

Sloped impulse lines mitigate water hammer effects. When liquid slugs move through horizontal lines, momentum changes create pressure surges upon impact with fittings or instruments. The slope prevents liquid accumulation that forms slugs. Continuous drainage maintains gas-filled lines that cannot transmit water hammer.

Size impulse tubing to dampen pressure pulsations without excessive lag. Standard practice uses 12 mm or 1/2-inch tubing for most applications. High-frequency pulsations from reciprocating pumps require larger diameter (18 mm) or shorter lengths to reduce acoustic resonance. Install pulsation dampeners when slope alone cannot stabilize readings.

For differential pressure measurements on flow elements, maintain identical slope on both high and low side impulse lines. Unequal liquid heads create zero shifts that appear as flow measurement errors. Use a spirit level during installation to verify slope consistency. Document as-installed slope directions for future maintenance reference.

Installation and Verification Procedure

• Step 1: Review process fluid properties including normal operating temperature, pressure, and phase. Identify potential condensation, solidification, or gas breakout conditions.
• Step 2: Determine slope direction based on service type. Gas and steam slope toward process. Liquid slopes toward instrument. Document the design rationale.
• Step 3: Calculate minimum slope angle. Use 1:10 (10%) as standard, 1:5 (20%) for heavy solids or viscous fluids. Convert to degrees for field layout — 10% equals 5.7 degrees, 20% equals 11.3 degrees.
• Step 4: Install tubing supports maintaining consistent slope. Use adjustable supports to compensate for structural steel variations. Verify slope with digital inclinometer at multiple points.
• Step 5: Install condensate pots, seal pots, or vent valves as required by service conditions. Position pots to maintain liquid seal during all operating conditions including startup and shutdown.
• Step 6: Pressure test impulse lines at 1.5 times process design pressure. Check for leaks at all connections. Verify slope maintained under pressure — flexible tubing may sag when pressurized.

Conclusion and Action Advice

The most common pressure measurement errors originate from improperly sloped impulse lines. Horizontal installations trap condensate in gas service and gas pockets in liquid service. Both conditions cause significant measurement errors and process control problems. Verify slope direction and angle during every installation and maintenance activity.

Audit existing impulse line installations. Identify horizontal runs and sections sloped in wrong directions. Prioritize corrections on control loops where measurement errors affect product quality or safety. Document slope directions on P&ID drawings and in the maintenance management system. An impulse line installed without proper slope is a measurement failure waiting to happen.

Author: Wang Lei is an industrial automation engineer with over 10 years of experience in PLC, DCS, and control systems.
