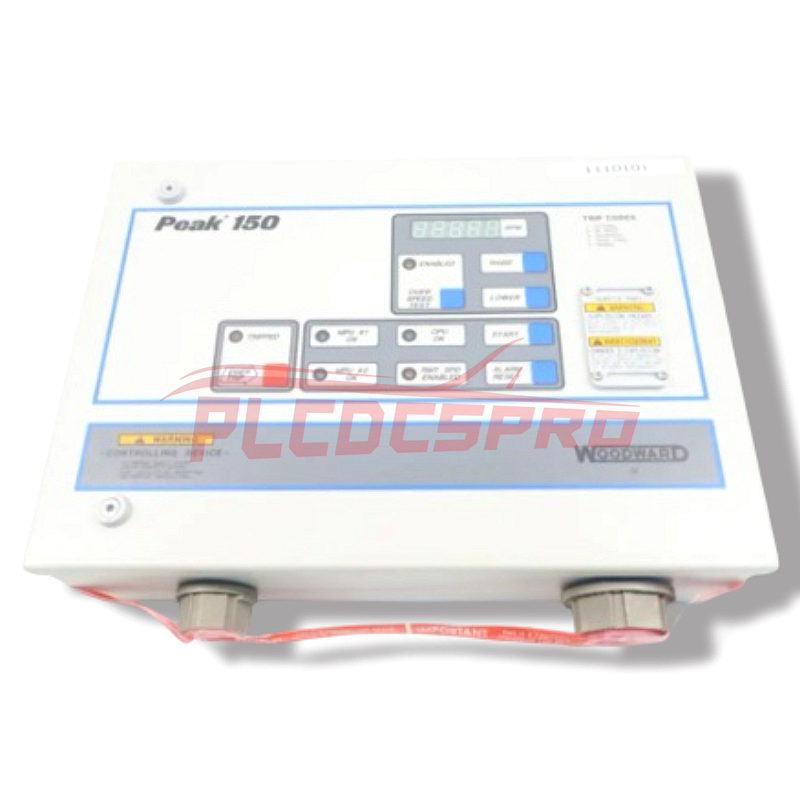

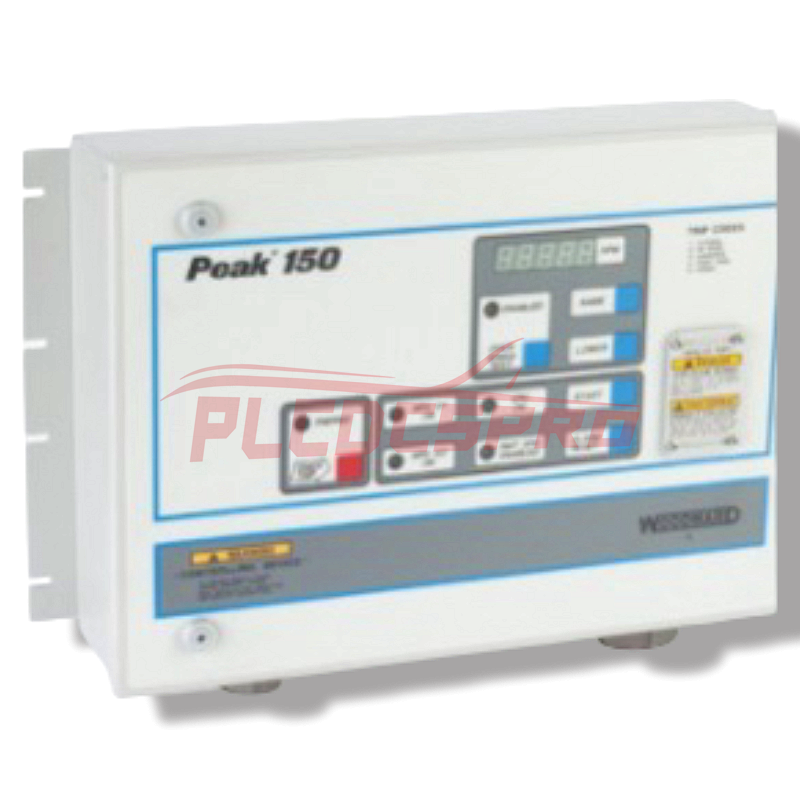

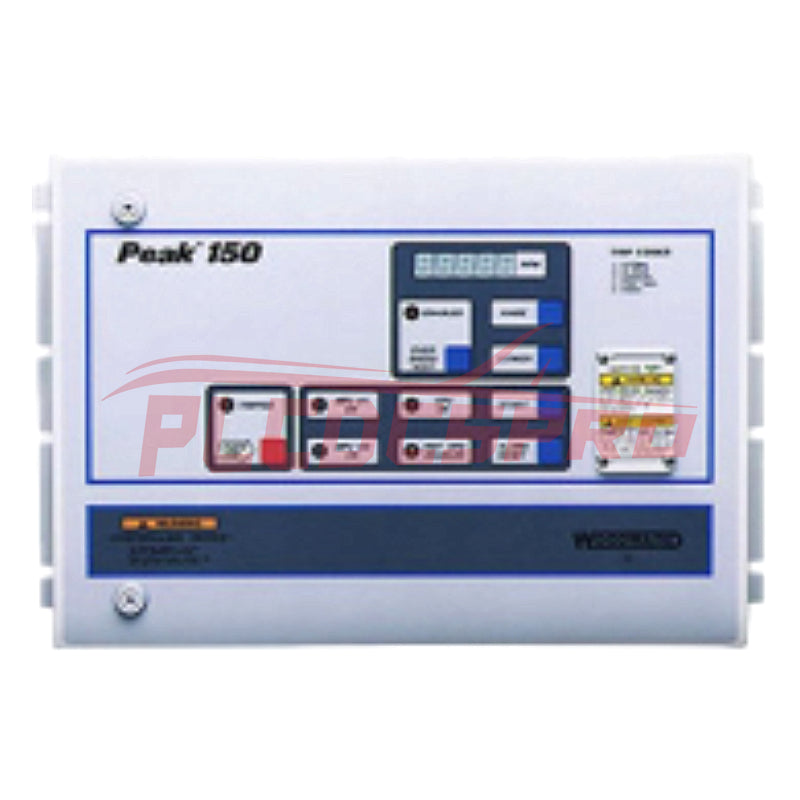

The Woodward 9905-867 is a Peak 150 digital control designed for single-valve or single-valve-rack steam turbines. It features AC/DC power input, NEMA 4X enclosure, and Modbus communications for reliable turbine speed and load control.
Core Specs
Series: Peak 150
Processor: 16-bit, 12 MHz microprocessor
Power input: 90–150 VDC or 88–132 VAC, 47–63 Hz
Communications: Modbus (RS-232/422/485)
Enclosure: NEMA 4X
Remote speed setpoint: 4–20 mA input
Dimensions: 483 × 310 × 105 mm
Highlights
Supports dual speed-control dynamics
Front-panel operator interface with status and alarm functions
Overspeed trip test and emergency trip capability
Compact, lower-cost alternative for single-valve steam turbines
FAQ
What turbines is it for? Single-valve or single-valve-rack steam turbines.
Power options? AC or DC input.
Enclosure rating? NEMA 4X.
Installation Guide
Mount the unit in a suitable location (panel or enclosure).
Connect AC or DC power within the specified range.
Wire speed pickup, actuator, and remote 4–20 mA signals.
Configure Modbus communication if required.
Perform initial speed and trip tests according to the manual.
Selection Tips
Select for compact digital control of single-valve steam turbines.
Confirm power supply type (AC/DC) matches site conditions.
Use when Modbus connectivity and NEMA 4X protection are needed.
