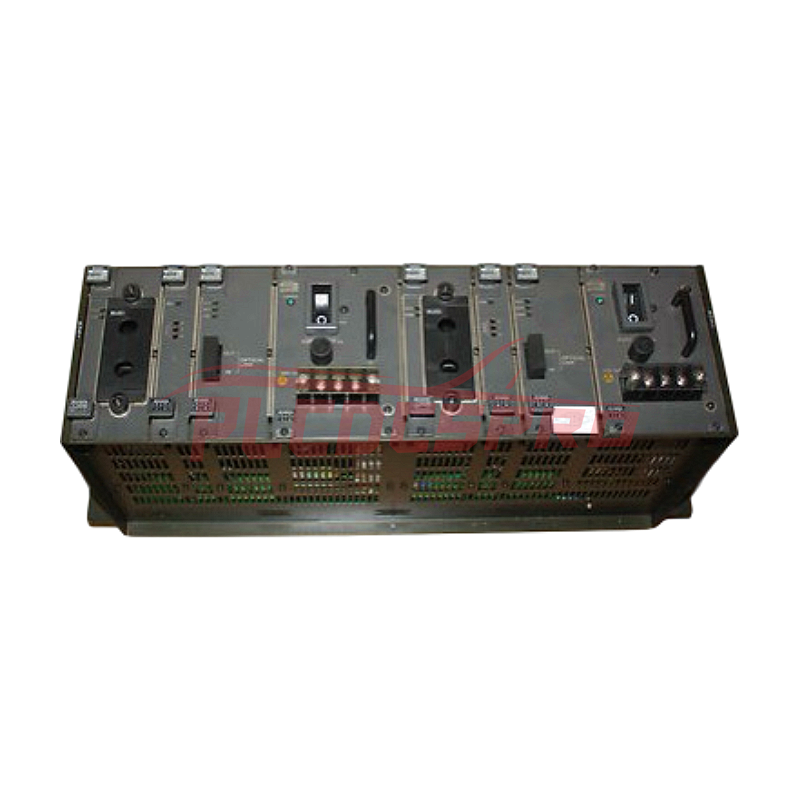

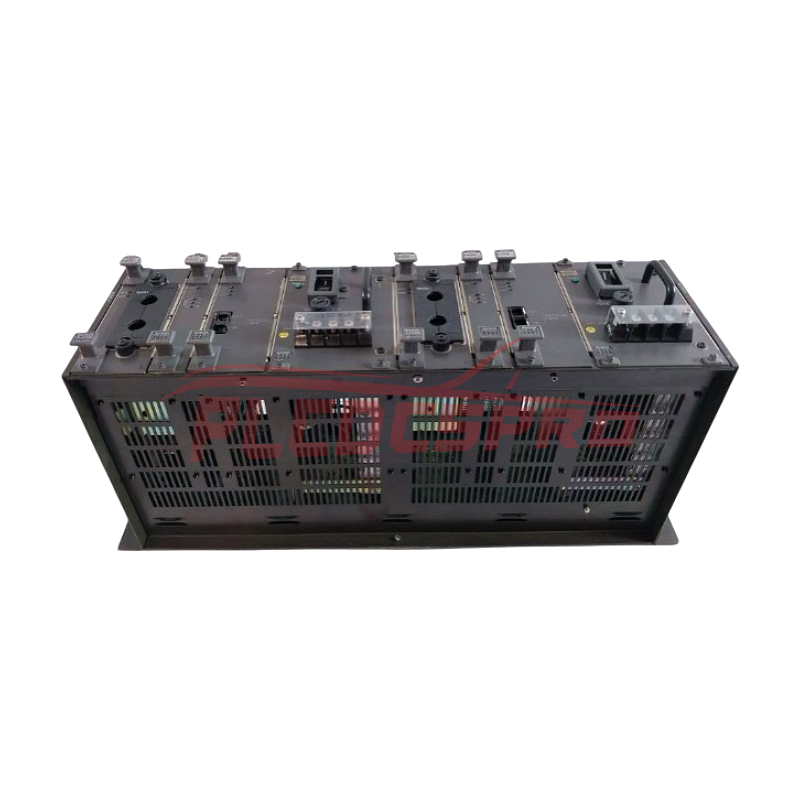

The YNT511D-P42 is a rack-mounted optical bus repeater developed by Yokogawa for use in CENTUM VP and CENTUM CS control systems. It extends the communication range of the system’s S3 bus by converting electrical signals into optical signals, enabling high-speed data transmission over long distances with minimal signal degradation.
Technical Specifications
Model: YNT511D-P42
Function: Optical bus repeater rack (without repeater cards)
Bus Type: S3 bus (Yokogawa proprietary)
Extension Range: Up to 2 km via optical fiber
Signal Type: Converts electrical to optical and vice versa
Compatibility:
CENTUM VP
CENTUM CS
V net and RIO infrastructures
Mounting: 19-inch rack standard
Weight: 1.0 kg
Power Supply: 220 V AC
Operating Temperature: Standard industrial range
Material: Industrial-grade enclosure for EMI resistance
Redundancy: Supports dual repeater mode for fault tolerance
Installation Notes
Use shielded cables for electrical bus connections
Follow Yokogawa’s optical fiber routing and termination guidelines
Activate dual repeater mode for redundancy if required
Schedule annual inspections for cable integrity and firmware updates
