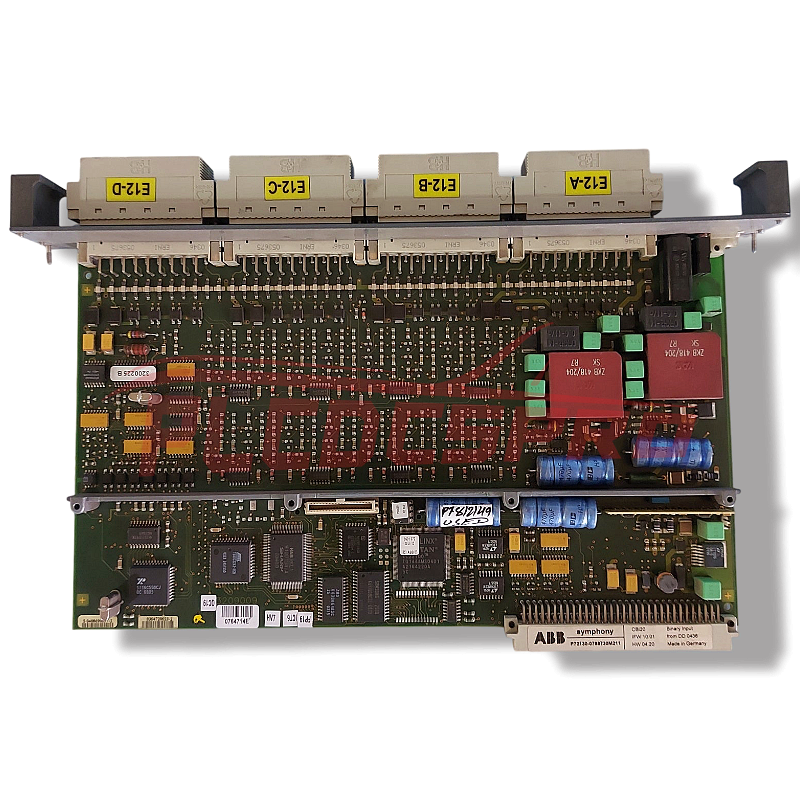

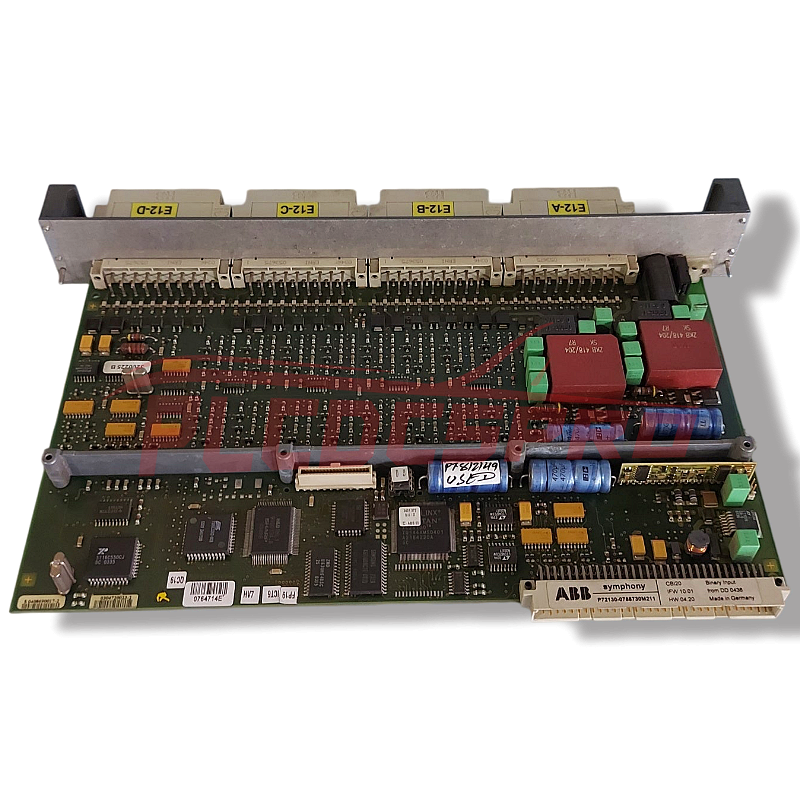

The ABB CBI 20 is a 32-channel binary input module designed for ABB control systems. It offers high-resolution signal detection, galvanic isolation, redundancy support, and integrated diagnostics for reliable process monitoring.
Technical Specifications
Catalog Number: 72130-4-0788730
Input Channels: 32 (two groups of 16)
Signal Resolution: 1 ms
Monitoring: Integrated module diagnostics
Isolation: Central galvanic separation of system inputs
Filter Time: Configurable by group
Redundancy: Supported
Voltage Levels: 24 V / 48 V (with external scanning resistors)
Dielectric Test Voltage: 500 V AC
Max Current per Channel: 2 A
Process Connections: 27 gray terminals
Mounting: DIN rail, horizontal, latch-secured
Dimensions:
Width: 64 mm (incl. connector), 58.5 mm installed
Depth: 58 mm (without terminals), 106 mm (with terminals)
Height: 194 mm (incl. latch)
Weight: 0.17 kg
Installation Notes
CI100 Connection Unit – Cat. No. 0745213
CI101 Redundant Connection Unit – Cat. No. 0745203
