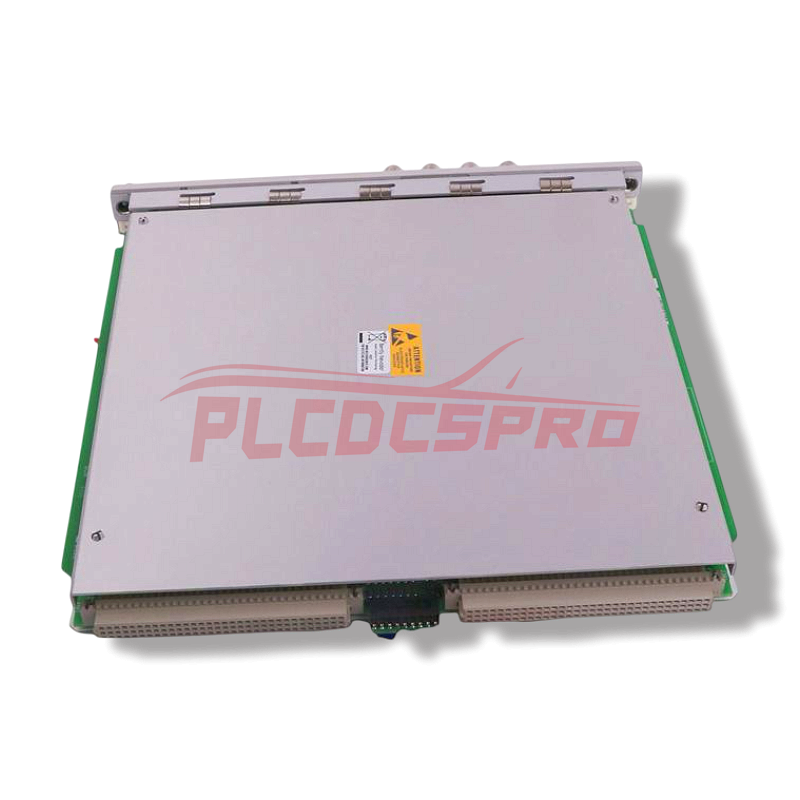

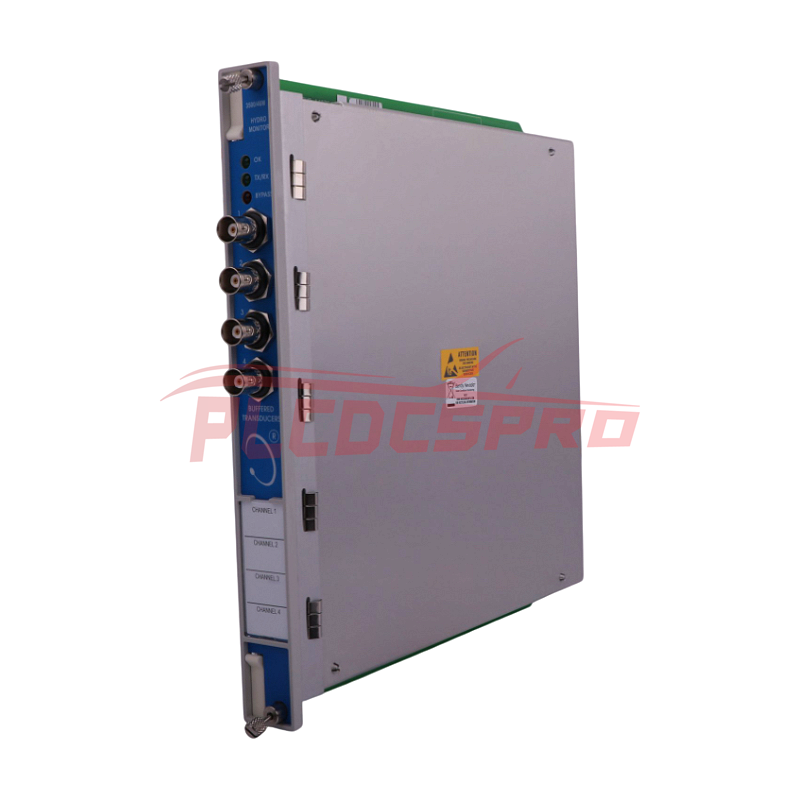

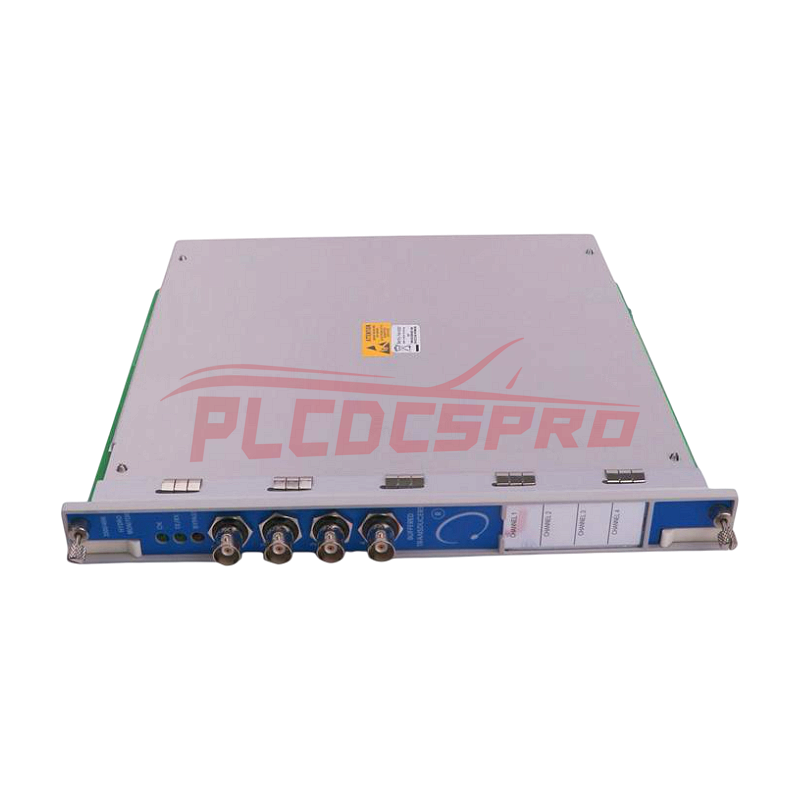

The Four-Channel Hydro Monitoring Module from the Bently Nevada 3500 Series is designed for vibration, position, air gap, and dynamic pressure measurements in hydroelectric machinery. It accepts input from proximity, seismic, dynamic pressure, and air gap sensors. The module supports multimode configuration for machine state-based monitoring, ensuring reliable protection for hydro turbines and other rotating equipment in hydroelectric plants.
Technical Specifications
Module Assembly: 3500/46M
Channels: 4 (configured in pairs)
Sensor Inputs:
Proximity probes (e.g., 3300 XL)
Seismic transducers (Velomitor, accelerometers)
Dynamic pressure sensors (e.g., 350300 series)
Air gap sensors
Input Impedance:
Prox/Accel: 10 kΩ
Velomitor: 3.5 MΩ
Multimode Positive I/O: 50 kΩ
Sensitivity (typical):
Radial Vibration: 0.79–7.87 mV/μm
Air Gap: 0.20–0.55 mV/μm
Velocity: 20 mV/mm/s
Acceleration: 1.02–2.55 mV/m/s²
Power Consumption: 7.7 W typical
Recorder Outputs: 4–20 mA per channel
Output Impedance: 550 Ω
Voltage Compliance: 0–12 Vdc across load
Resolution: 0.3662 μA/bit
Update Rate: ≤100 ms
Status LEDs: OK, TX/RX, Bypass
Operating Temperature: –40°C to +85°C
Humidity: 5–95% RH non-condensing
Compliance: CSA, ATEX, IECEx (option-dependent)
Country of Origin: USA
Key Features
Vibration, position, air gap, and dynamic pressure monitoring
Multimode configuration with up to 8 machine states
