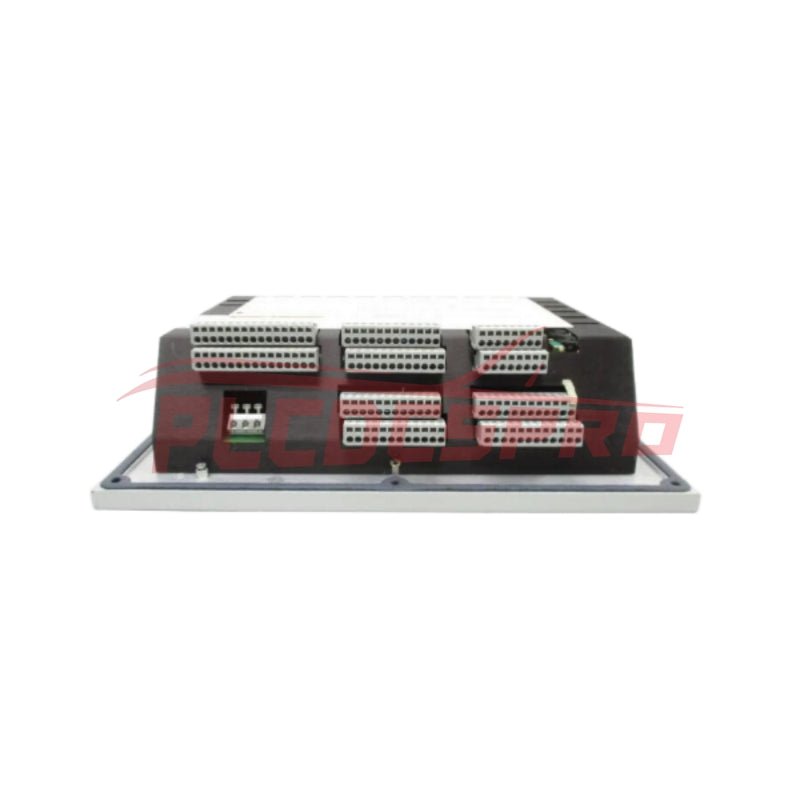

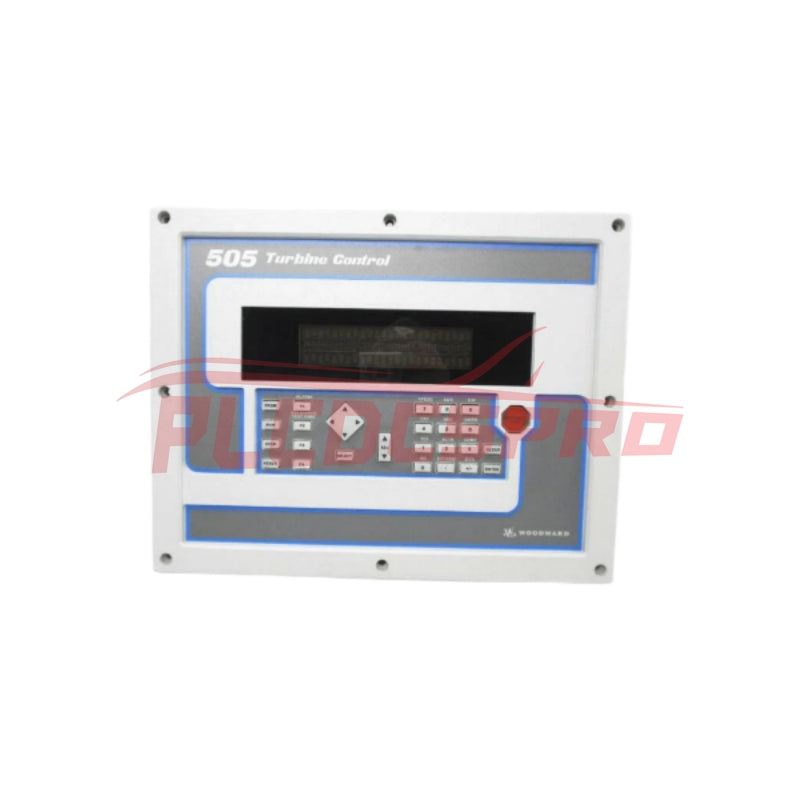

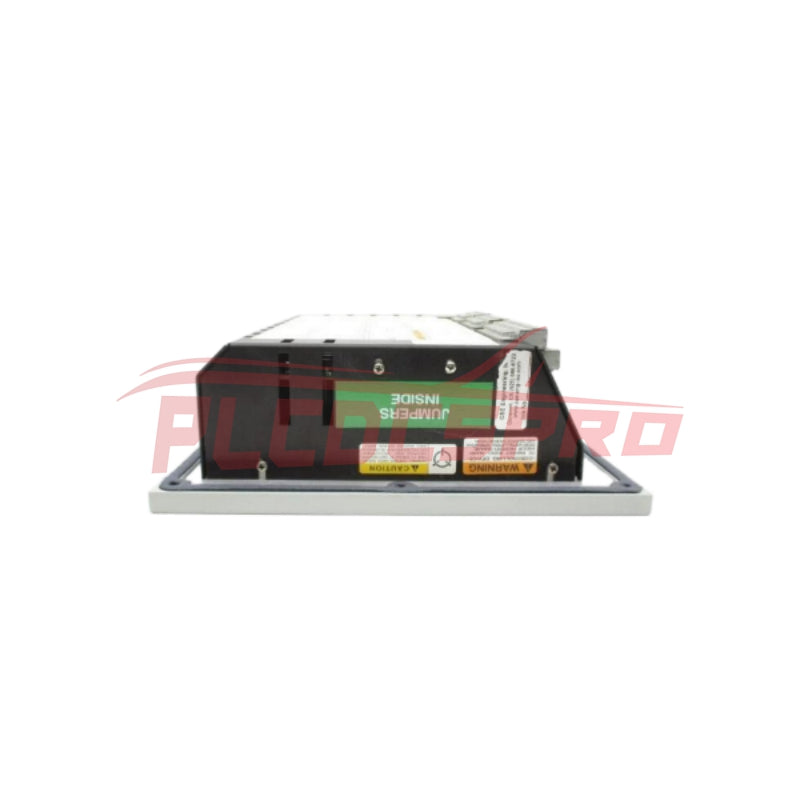

The9907-166MfromWoodwarddelivers precise digital control for industrial steam and gas turbine systems. ThisWoodward Digital Turbine Controlbelongs to the proven505 Series, widely used in critical power applications.
Moreover, the controller manages speed, load, and sequencing through high-resolution digital processing architecture. Therefore, operators achieve stable turbine operation, fast response, and repeatable performance across varying loads.
In addition,Woodwarddesigns the9907-166Mfor long-term reliability in harsh industrial environments. As a result, power plants and process industries trust this controller for continuous-duty turbine regulation.
Technical Specifications
Category
Parameter
Specification
General
Manufacturer
Woodward
General
Model
9907-166M
General
Product Type
Digital Turbine Control
General
Series
Woodward 505 Series
Electrical
Power Supply Voltage
18–32 VDC nominal
Electrical
Power Consumption
Approximately 15 W during normal operation
Electrical
Power Protection
Built-in reverse polarity and overvoltage protection
Electrical
Energy Storage
Internal non-volatile memory for configuration and event data
Electrical
Data Retention
Maintains stored parameters without external power
Mechanical
Enclosure
Industrial-grade metal housing
Mechanical
Mounting
Panel-mounted installation
Mechanical
Dimensions (H × W × D)
Approx. 222 mm × 286 mm × 152 mm
Mechanical
Dimensions (inches)
Approx. 8.75 in × 11.25 in × 6 in
Mechanical
Weight
Approx. 4.5 kg (10 lb)
Mechanical
Environmental Design
Resistant to vibration and electrical noise
Inputs
Analog Inputs
8 configurable analog input channels
Inputs
Analog Signal Types
Supports standard industrial voltage and current signals
Local or remote configuration via serial interface
Control Functions
Speed Control Modes
Isochronous and droop speed control
Control Functions
Load Control
Precise turbine load regulation and sharing
Control Functions
Sequencing
Integrated turbine start-up and shutdown sequencing
Control Functions
System Integration
Interfaces with actuators, governors, and protection systems
Applications
Supported Turbines
Steam turbines and gas turbines
Applications
Typical Industries
Power generation, cogeneration, oil & gas, process industries
Applications
Retrofit Capability
Suitable for replacing legacy analog turbine governors
FAQ
Q1: Is the 9907-166M a brand-new original Woodward product? Yes, the9907-166Mships as a brand-new, factory-originalWoodwardturbine control unit.
Q2: Do you keep the 9907-166M in stock? Yes, we maintain ready stock for the9907-166Mto support urgent project requirements.
Q3: How fast do you ship after ordering? We ship within 3 days to 2 weeks, depending on order quantity and logistics arrangements.
Q4: Which logistics providers do you use for delivery? We typically ship using DHL and other major international express carriers.
Q5: What is your return policy if quality issues occur? We support returns within 30 days if any verified quality issue appears.
Q6: Can the 9907-166M integrate with existing DCS systems? Yes, the9907-166Msupports serial communication and Modbus-compatible protocols for DCS connectivity.
Installation Notes
Install within Woodward control racks or cabinets
Connect directly to magnetic pickup sensors near turbine or engine shafts
Use proper wiring and shielding to prevent electrical noise interference
Calibration and verification of MPU signals may be required during commissioning
