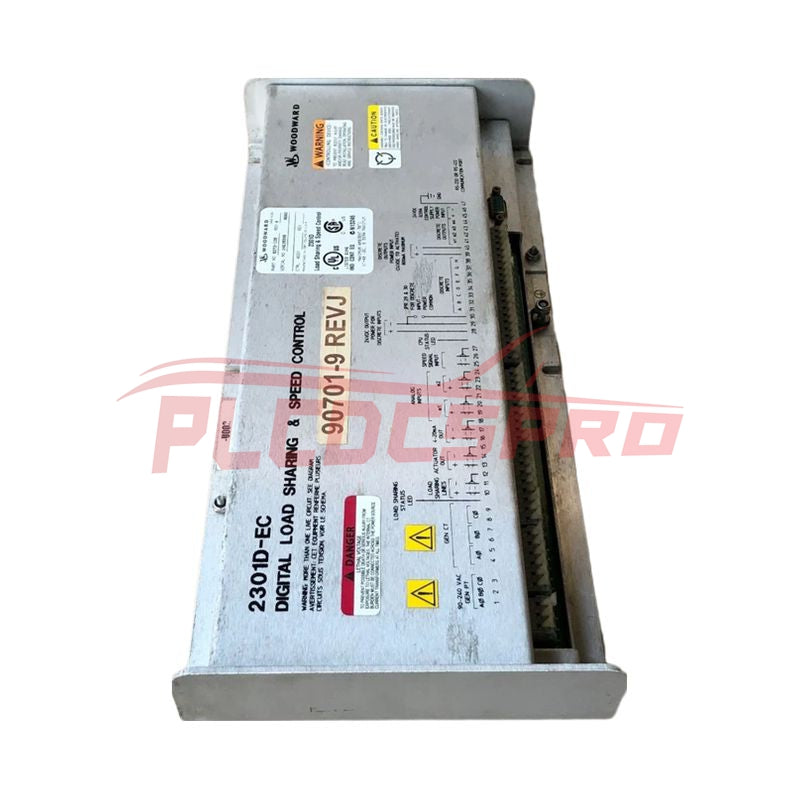

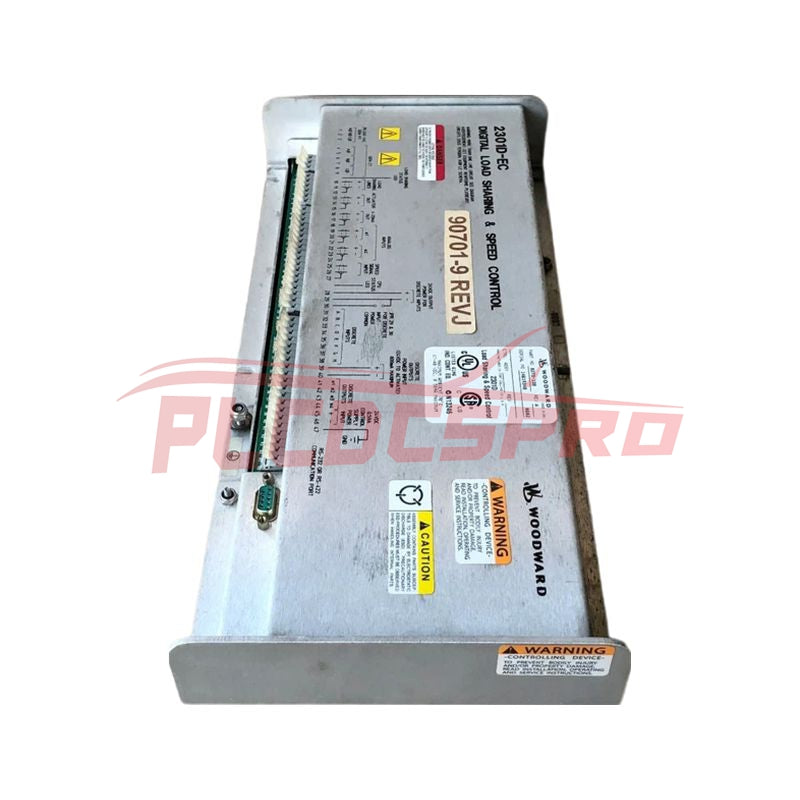

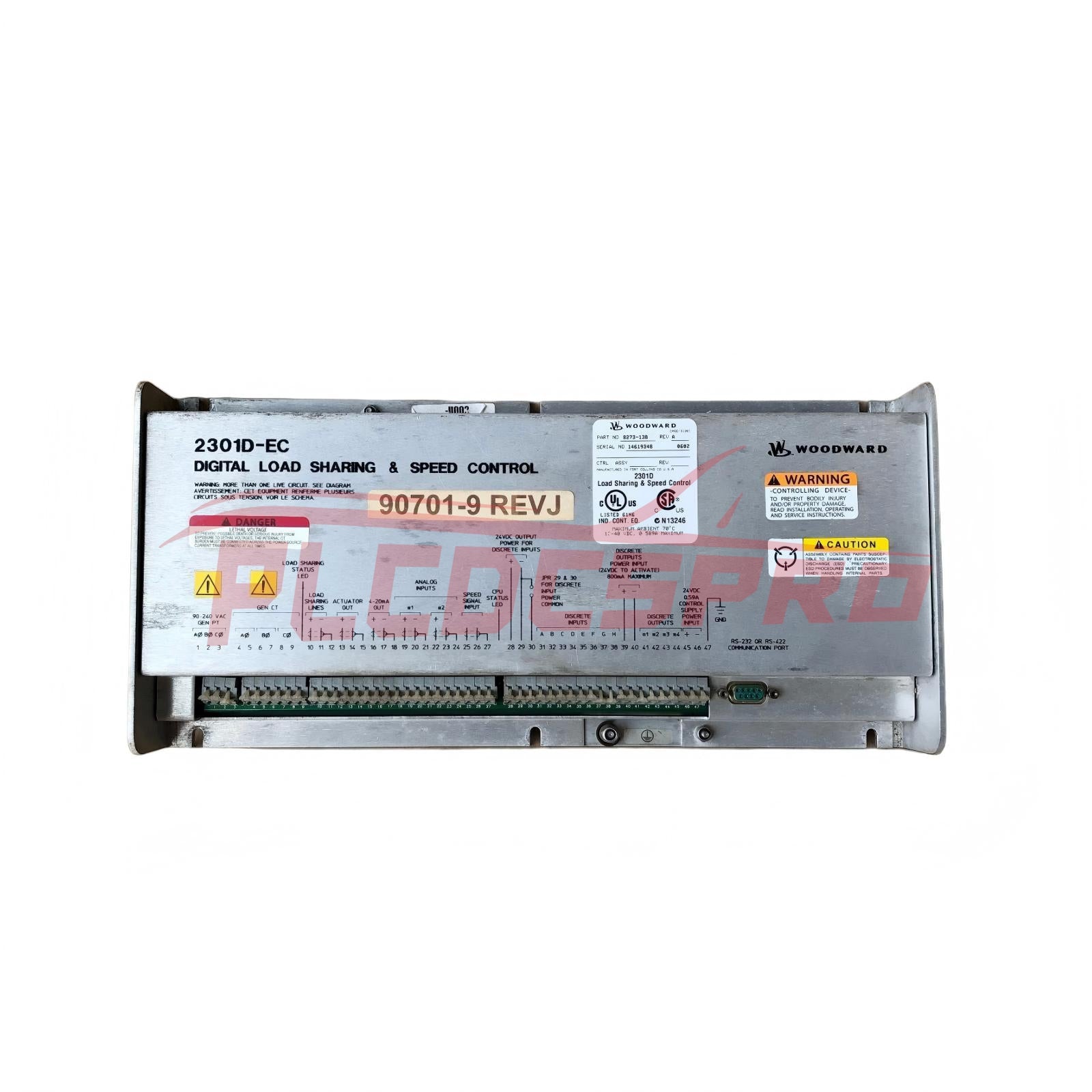

8273-138 | Woodward DIGITAL LOAD SHARING SPEED CONTROL

Sku: 8273-138
Country Of Origin: USA
Vendor: Woodward
Type: DIGITAL LOAD SHARING SPEED CONTROL

In stock!

100% Original and Authentic

100% Brand New, Ready to ship

Support Refund, 7X24h Service

Product description

Overview

The Woodward 8273-138 Digital Load Sharing Speed Control delivers precise governor control for engine-driven generator systems.
This controller manages engine speed and real power sharing across multiple generator sets operating in parallel.
It combines digital processing accuracy with proven Woodward load sharing algorithms developed for demanding industrial environments.
Moreover, the unit supports stable frequency control during grid-connected or isolated bus operation.
Engineers rely on this module when predictable load distribution and fast transient response are critical.

Designed for industrial power applications, the 8273-138 integrates seamlessly into modern genset control architectures.
Therefore, it serves as a reliable upgrade for legacy analog governors and aging load sharing systems.

Technical Specifications

Parameter	Detailed Specification
Model	8273-138
Product Type	Digital Load Sharing Speed Control
Control Function	Engine speed regulation with real power (kW) load sharing
Control Modes	Isochronous control and adjustable droop operation
Application Scope	Diesel and gas engine driven generator sets
Power Supply Voltage	18–32 VDC nominal
Power Consumption	Low power solid-state design suitable for control panels
Protection	Reverse polarity protection and internal electronic safeguarding
Speed Input Type	Magnetic pickup (MPU) compatible
Speed Signal Range	Wide frequency range suitable for industrial engine speeds
Overspeed Detection	Integrated overspeed sensing and protective response
Load Sharing Method	Analog load sharing line for proportional kW balance
Parallel Capability	Supports multiple generators operating in parallel
Grid Compatibility	Suitable for isolated bus and utility parallel systems
Actuator Output	Proportional electric actuator drive output
Compatible Actuators	Woodward electric governor actuators
Speed Adjustment	Adjustable speed setpoint calibration
Droop Adjustment	Field adjustable droop percentage
Gain Tuning	Adjustable gain for dynamic response optimization
Stability Tuning	Adjustable damping and stability parameters
Operating Temperature	Industrial temperature range for generator enclosures
Storage Temperature	Extended non-operating temperature tolerance
Mounting Method	Panel or cabinet mounting
Electrical Connections	Terminal strip field wiring connections
Environmental Suitability	Designed for industrial and marine generator environments
Duty Rating	Suitable for standby, prime power, and continuous operation

FAQ

Q1: What is the main function of the Woodward 8273-138?
The controller manages engine speed and balances real power between parallel generator sets.

Q2: Can the 8273-138 operate in both droop and isochronous modes?
Yes, the unit supports adjustable droop and true isochronous control modes.

Q3: Is this controller suitable for grid-parallel applications?
Yes, it supports stable operation when generators run in parallel with utility grids.

Q4: What type of engines can this module control?
It works with diesel or gas engines using compatible electric actuators and speed pickups.

Q5: Is the 8273-138 appropriate for retrofit projects?
Yes, it is commonly used to replace aging analog load sharing speed controls.

Installation Notes

Install within Woodward control racks or cabinets
Connect directly to magnetic pickup sensors near turbine or engine shafts
Use proper wiring and shielding to prevent electrical noise interference
Calibration and verification of MPU signals may be required during commissioning
