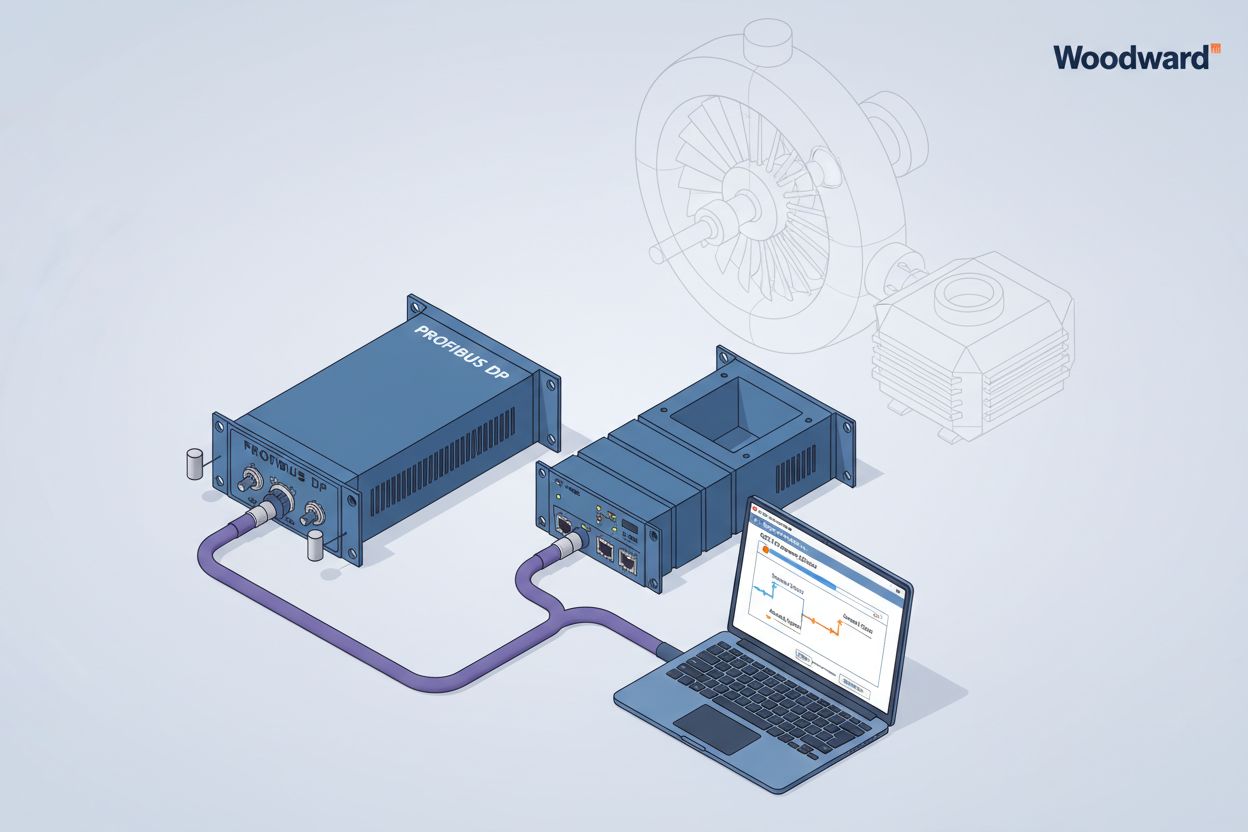

Woodward Governor Control: PROFIBUS DP Network Configuration for Turbine Systems

PROFIBUS DP slave governor, PROFIBUS DP watchdog timer, steam turbine DCS integration, turbine droop load sharing configuration, turbine speed control fieldbus, Woodward 505 DP network, Woodward governor PROFIBUS DP, Woodward GSD file configuration
กรกฎาคม 07, 2026

Q: Why Use PROFIBUS DP for Woodward Governor Integration?

Woodward governors control turbine speed, load, and extraction pressure with sub-millisecond precision. PROFIBUS DP enables digital communication between the governor (DP slave) and the DCS or PLC (DP master), eliminating analog signal wiring and improving control accuracy. The Woodward 505 Enhanced Digital Governor Controller (9907-1182) and Woodward 505 Turbine Control Governor Enhanced Digital (9907-1183) both support PROFIBUS DP slave operation for integration with Emerson Ovation, Yokogawa CENTUM VP, and other DCS platforms.

Q: How Do I Set Up the PROFIBUS DP Hardware?

Step 1: Mount the DP interface module in the governor cabinet.
Step 2: Connect the shielded DP cable to the governor terminal. Use cable type A for standard applications.
Step 3: Set the device address using rotary switches. Typical address range is 1 to 125 — ensure the address is unique on the network.
Step 4: Verify termination resistors are installed at both network ends.

Check the PROFIBUS cable specifications: maximum segment length is 1200 metres at 93.75 kbps. Higher baud rates reduce maximum segment length. Use repeaters for longer distances.

Q: How Do I Install the GSD File and Configure the Network?

Step 1: Import the Woodward GSD file into the master configuration tool hardware catalog. The GSD defines device parameters and data formats.
Step 2: Add the governor to the DP network topology in the master configuration.
Step 3: Configure input/output data mapping. Map the speed setpoint to output data. Map actual speed and status to input data. Set the data format for each parameter.
Step 4: Set baud rate and watchdog parameters. Verify consistency between master configuration and governor configuration.

Q: How Do I Configure Speed Control Parameters?

Configure the governor speed control parameters: set the speed range matching the turbine rating, configure droop settings for load sharing, set acceleration and deceleration limits, and program emergency overspeed trip values.

Parameter changes affect turbine operation — always test changes in simulation mode first. Verify parameter ranges with the turbine manufacturer and implement management of change (MOC) procedures. Document all parameter values before and after any change.

Q: How Do I Monitor and Troubleshoot the DP Network?

Step 1: Check the DP master diagnostic buffer for communication errors.
Step 2: Verify governor status bytes and confirm the communication indicator shows active data exchange.
Step 3: Monitor cyclic data exchange counters for error counts.
Step 4: Test watchdog timeout behavior by disconnecting the DP cable and verifying the governor transitions to failsafe mode within the configured watchdog period.

Maintain spare DP cables and connectors. Use bus monitors (such as Softing PB-T3) for advanced troubleshooting of signal quality and reflections.

What Is the Key Action Advice?

Configure hardware addresses carefully before powering up — duplicate addresses cause immediate network failure. Install the correct GSD file version matching the governor firmware. Map process data accurately and test all parameters before commissioning. Monitor network health continuously and document all configuration settings. For critical turbines, consider redundant DP networks. Partner with Woodward for governor tuning services to ensure safe and efficient turbine operation.

Author: Huang Wei is an industrial automation engineer with over 10 years of experience in PLC, DCS, and control systems.
