Single Acting vs Double Acting Actuators: Selection Criteria, Fail-Safe Design, and Field Fault Diagnosis

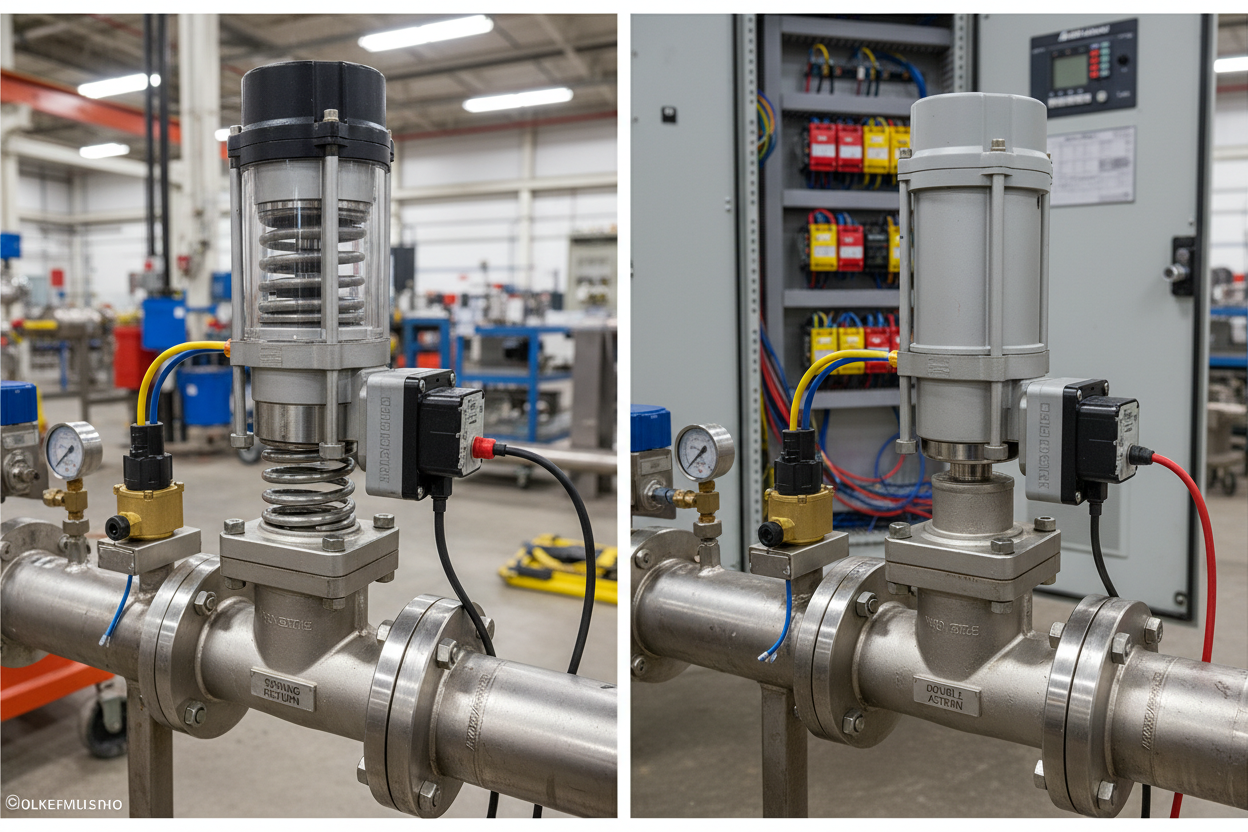

The Fundamental Difference and Why It Matters in Safety Applications

A single acting actuator uses instrument air to move in one direction and a spring to return to the safe position when air is removed. A double acting actuator uses air pressure to move in both directions. Removing air from a double acting actuator leaves the valve in its last position — it does not drive to a safe state.

This distinction is critical in SIS applications. IEC 61511 requires every final element to have a defined and verifiable fail-safe position. A double acting actuator without a spring accumulator or electrohydraulic backup cannot satisfy this requirement on instrument air loss. Single acting spring return actuators automatically satisfy fail-safe position requirements on air failure, making them the default choice for ESD valves in SIL 1 and SIL 2 applications. The Woodward ProAct series is an electrohydraulic actuator — inherently double acting — where fail-safe is achieved by closing the hydraulic supply via a spring-loaded solenoid on the hydraulic manifold.

Selection Matrix: Matching Actuator Type to Application

• ESD isolation valves on SIL 1 or SIL 2 loops: single acting, spring return. Fail-safe position must be confirmed by spring alone, without air or power.
• Control valves requiring 0.1% positioning resolution: double acting with electro-pneumatic positioner. Examples include feedwater control valves, compressor anti-surge valves.
• Turbine governor valves on Woodward ProAct series: electrohydraulic, inherently double acting. Fail-safe achieved by closing the hydraulic supply and draining the actuator cylinder via a spring-loaded solenoid on the hydraulic manifold.
• Butterfly valves on large diameter pipes (>DN400): double acting preferred because spring force sufficient to rotate a large disc against flow velocity would require an excessively large spring package.
• Modulating control with SIL function required: double acting actuator with partial stroke test capability. Allen-Bradley ControlLogix with HART DTM can execute a 15% PST and log actuator signature via RSLogix 5000 AOI.

Document the actuator type selection in your loop specification sheet with a reference to the fail-safe analysis. This record becomes part of the IEC 61511 safety requirements specification for each final element.

Spring Return Force Calculation for Single Acting Actuators

Spring return actuator sizing requires calculating the net torque available at the valve stem under worst-case conditions. The required spring torque at seat contact equals the valve seating torque plus dynamic torque at maximum differential pressure plus stem friction. For a typical 2-inch Class 300 ball valve at 50 bar differential, seating torque is approximately 220 N·m. Add 15% for friction and 10% for spring degradation over 10 years. Specify a spring package that delivers at least 280 N·m at minimum supply air pressure (typically 4.5 bar gauge).

The spring return actuator air-to-open travel time is also critical. An ESD valve must close within the SIL response time budget. For a Woodward ProAct governor valve application, the actuator response time from 100% to 0% position must be less than the turbine overspeed protection trip delay (typically 200 ms). Woodward specifies the ProAct II actuator frequency response as 5 Hz at −3 dB, giving a step response of approximately 70 ms for a full-stroke command — well within the 200 ms budget.

Solenoid Valve Wiring Differences for Single and Double Acting Actuators

For single acting actuators: use a normally open (NO) solenoid valve to supply air to the actuator. When de-energized (on ESD trip or power loss), the solenoid closes and vents the actuator cylinder. Wire the solenoid in series with the SIS output relay. Do not use a normally closed solenoid with a single acting actuator — a power failure would open the solenoid and supply air, fighting the spring return.

For double acting actuators: use a 5/2 directional control solenoid. Two ports connect to opposite ends of the actuator cylinder. On ESD trip, the solenoid switches and reverses the air flow direction, driving the valve to the opposite position. Specify a spring-return 5/2 valve (not a detented or double-solenoid type) so that power failure drives the actuator to the defined fail position.

On Allen-Bradley ControlLogix 1756-OB8EI isolated output modules, wire solenoid coils at 24 VDC with a freewheel diode across each coil. The 1756-OB8EI provides electronic short-circuit protection and individual channel diagnostics. Use RSLogix 5000 AOI “FinalElement” to monitor the output state and compare against the positioner feedback. A mismatch exceeding 5% for more than 500 ms triggers a valve fault alarm at ISA-18.2 Priority 2.

Field Fault Diagnosis for Both Actuator Types

• Step 1: Confirm actuator response with a HART communicator. Send a 0% position command and observe whether the valve stem moves. If position feedback changes but stem does not move, the stem coupling or yoke arm is broken. If neither changes, check air supply pressure at the actuator inlet (minimum 4.5 bar).
• Step 2 — Single acting: Measure spring return force by manually opening the air supply block valve and observing whether the valve closes without air pressure. A pressure bleed rate slower than 5 seconds indicates a solenoid pilot orifice restriction — clean or replace the solenoid.
• Step 3 — Double acting: Check both air inlet and outlet pressures simultaneously. The sum of supply and exhaust pressures should equal the instrument air header pressure. A supply pressure below 4.0 bar while the header is at 6.0 bar indicates a restriction in the 5/2 solenoid body.
• Step 4: Check positioner feedback signal at the Allen-Bradley AI module. Use RSLogix 5000 to read the raw 4–20 mA value. A reading below 3.8 mA indicates a broken feedback potentiometer or LVDT connection. A reading above 20.5 mA indicates a short in the feedback wiring. Both faults generate a BAD quality tag in the PLC and should trigger an automatic maintenance notification.
• Step 5 — Woodward ProAct: Connect a laptop running Woodward ToolKit software via the RS-232 service port. Monitor Actuator Position, Supply Pressure, and Control Current in real time. A mismatch between commanded current and actuator position greater than 5% at steady state indicates internal hydraulic leakage across the servo spool — requires a Woodward service depot repair.

Conclusion and Action Advice

Single acting and double acting actuators serve fundamentally different purposes. Selecting the wrong type for an ESD valve can mean the valve moves to the wrong position during a process emergency. The selection decision belongs in the functional safety design phase, not on the procurement requisition form.

If you are commissioning new ESD valves this quarter, verify the actuator fail-safe direction against the cause-and-effect matrix. For existing installations, perform a partial stroke test at the next available opportunity and record the stroke time against the SIL response budget. For Woodward ProAct governor applications, connect ToolKit and log the actuator frequency response before the next scheduled maintenance outage. Data captured today prevents an emergency repair tomorrow.

Author: Zhang Weijun is an industrial automation engineer with over 10 years of experience in PLC, DCS, and control systems.
